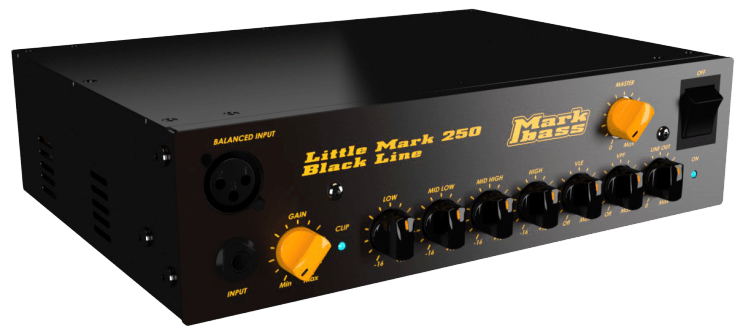

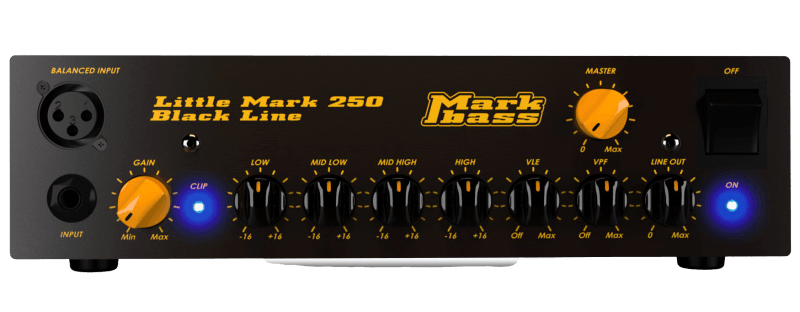

Markbass Little Mark 250

INPUT: impedance 500 Kohm, max. voltage 15 Vpp

BALANCED INPUT (XLR): impedance 100 Kohm, max. voltage 25 Vpp

EFFECT RETURN: impedance 33 Kohm, max. voltage 10 Vpp

GAIN: -60 dB to +23 dB range

MASTER VOLUME

LINE OUT LEVEL

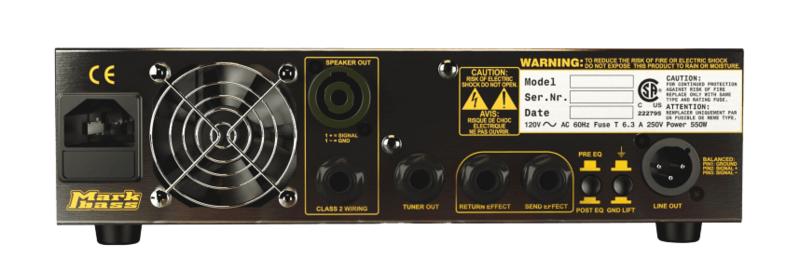

GROUND LIFT (switch on rear panel)

PRE/POST EQ (switch on rear panel)

LOW: center frequency: 40 Hz; level: ±16 dB

LOW MID: center frequency: 360 Hz, level: ±16 dB

HIGH MID: center frequency: 800 Hz, level: ±16 dB

HIGH: center frequency: 10 kHz, level: ±16 dB

VPF (Variable Pre-shape Filter) center frequency 380 Hz

VLE (Vintage Loudspeaker Emulator) frequency range 250 Hz-20 kHz

LINE OUT: balanced XLR, max. voltage 20 Vpp

EFFECT SEND: unbalanced, max. voltage 20 Vpp (pre-EQ)

TUNER OUT: unbalanced, max. voltage 2 Vpp

SPEAKER OUT: speakon/1/4" combo, 1/4"
